RGBIC Neon LED Rope Setup

Overview

Setting up your RGBIC Neon LED Rope is straightforward: connect the strip to your controller, power everything up, configure WLED, and you're ready to create stunning lighting effects.

Connection Flow

24V Power Supply → RGBIC Controller → LED Strip

What You'll Achieve

Once setup is complete, you'll have:

  • 140 individually controllable pixels – creating smooth, flowing colour effects
  • Wi-Fi control – from your smartphone or computer
  • Voice control – via Alexa or Google Assistant (with compatible controllers)
  • Music sync – capabilities for reactive lighting
  • 100+ pre-set effects – plus unlimited custom possibilities

The process is designed to be beginner-friendly, with most of the complexity handled automatically by modern WLED controllers.

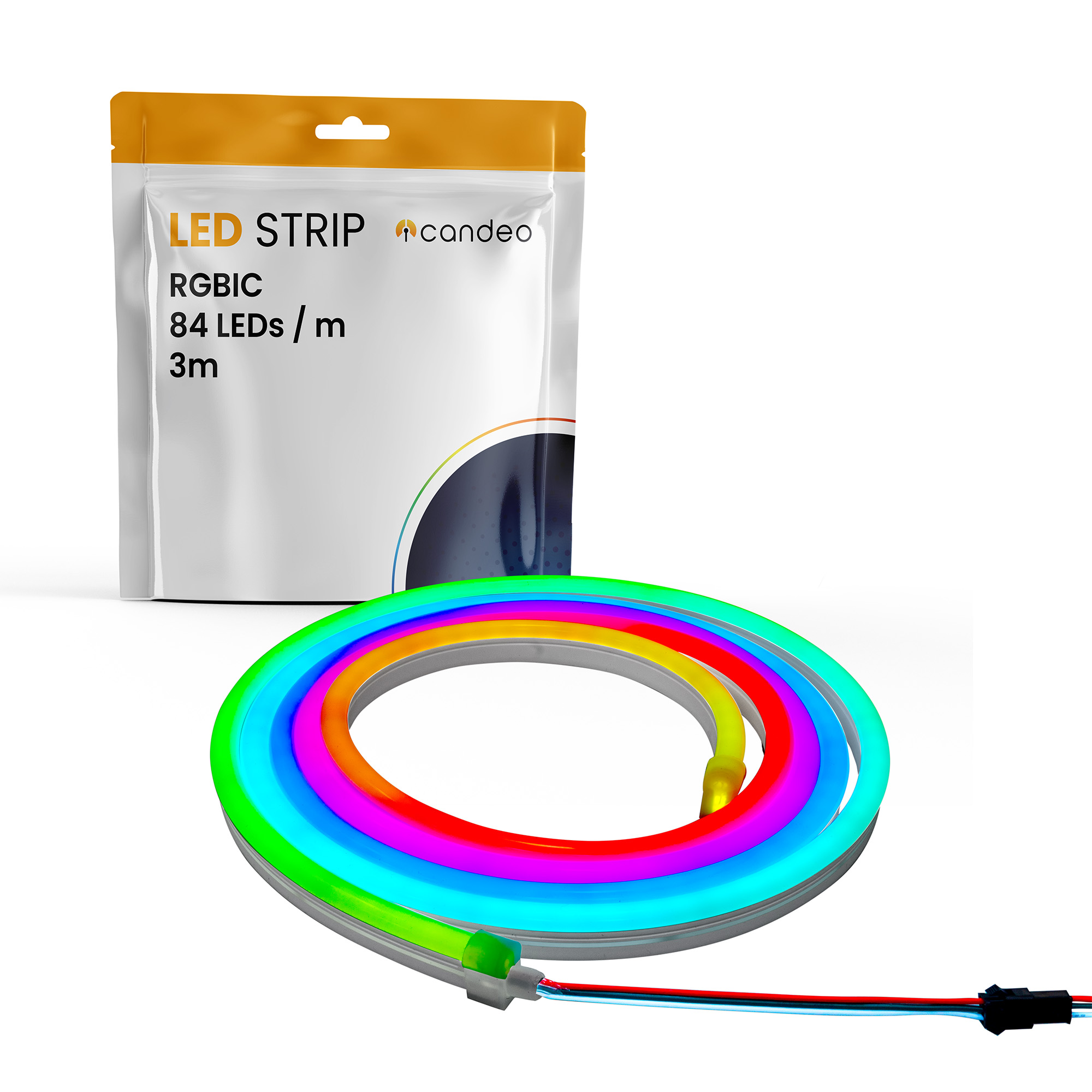

About Your LED Strip

  • Avoid excessive bending – The neon rope is flexible but don’t create sharp kinks that could damage internal wiring.
SpecificationValue
LED Strip Length3m
LED Density84 LEDs/m
Total LEDs252
Group Size6
WLED Pixels42

What You'll Need

Essential Components

  • RGBIC Controller – We recommend the Candeo WLED Controller, though any WLED-compatible or addressable LED controller will work.
  • 24V Power Supply – Minimum 1.5A, we recommend 2A (see Power Guide below).
  • Wi-Fi Network – 2.4GHz required; 5GHz not supported by most controllers.

Tools & Materials

  • Small Phillips screwdriver (not required for Candeo WLED Controller).
  • Wire strippers (for custom connections).
  • Mounting clips or adhesive backing.
  • Smartphone or computer for setup.

Power Supply Guide for this LED strip

Minimum:

For 3 metres: 24V, min. 1.5A (36W)

Recommended (Suitable for 90% of use cases):

For typical use with mixed colours, effects, and moderate brightness levels:

24V DC, 2A (48W) Power Supply

  • Supports full brightness for most colours and effects
  • Handles warm white and typical RGB combinations
  • Provides comfortable safety margin for daily use

Full Feature Power Supply Requirements:

For maximum brightness white lighting or demanding applications:

24V DC, 2.5A (60W) Power Supply

  • Required for full brightness pure white output
  • Maximum performance capability

Setting Up

  1. Connect the LED strip to the controller.
    1. The Candeo controller uses clearly labelled, easy-clip terminals:
      1. Red wire (LED Strip)+24V terminal
      2. White wire (LED Strip)DATA terminal
      3. Green wire (LED Strip)GND terminal
  2. Double check your power supply does not exceed 24V, and connect the power supply.
  3. Set up your WLED controller by following these instructions.
  4. Enter the WLED Config settings, go to LED Preferences, and enter the following:
    1. Maximum PSU Current: Set to match the mA rating of your PSU (e.g., 1500 for 1.5A)
      Warning Warning: Do not enter more than your PSU can handle
    2. Length: Enter 42
    3. Colour Mode: RGB
  5. Save
  6. Verify all LEDs function properly
  7. Test different colours and effects
  8. Confirm smooth operation before mounting
