Overview
Setting up your RGBIC Gel Protected LED Strip is straightforward: connect the strip to your controller,
power everything up, configure WLED, and you're ready to create stunning lighting effects.
Connection Flow
12V Power Supply → RGBIC Controller → LED Strip
What You'll Achieve
Once setup is complete, you'll have:
- 140 individually controllable pixels – creating smooth, flowing colour effects
- Wi-Fi control – from your smartphone or computer
- Voice control – via Alexa or Google Assistant (with compatible controllers)
- Music sync capabilities – for reactive lighting
- 100+ pre-set effects – plus unlimited custom possibilities
The process is designed to be beginner-friendly, with most of the complexity handled automatically by modern WLED controllers.

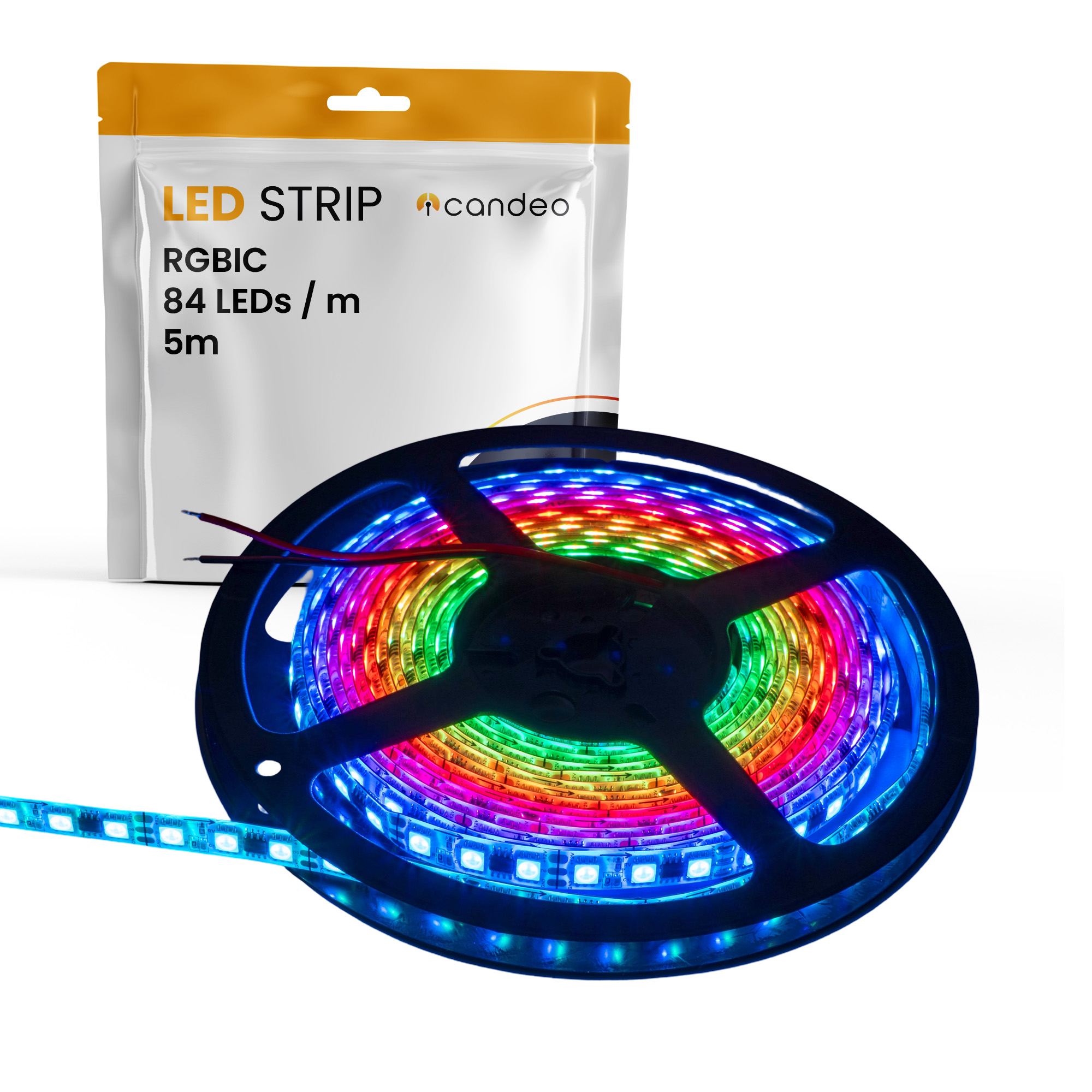

About Your LED Strip
- High-brightness output – 84 LEDs per metre deliver vivid, consistent lighting
- Cutting points – Can be cut every 3 LEDs (pixel intervals) for custom lengths
- Gel protection – Durable coating provides protection while maintaining flexibility
- Longer runs – 5-metre length perfect for larger installations and room perimeters
Specification | Value |
---|
LED Strip Length | 5m |
LED Density | 84 LEDs/m |
Total LEDs | 420 |
Group Size | 3 |
WLED Pixels | 140 |
What You'll Need
Essential Components
- RGBIC Controller – We recommend the Candeo WLED Controller, though other WLED-compatible models will work.
- 12V Power Supply – 4A recommended (see Power Guide below).
- Wi-Fi Network – 2.4GHz required; 5GHz not supported by most controllers.
Tools & Materials
- Small Phillips screwdriver (not required for Candeo WLED Controller).
- Wire strippers (for custom connections).
- Mounting clips or adhesive backing.
- Smartphone or computer for setup.
Power Supply Guide for this LED strip
Minimum:
For 5 metres: 12V, 3A (36W)
Recommended (Suitable for 90% of use cases):
For 5 metres: 12V DC, 4A (48W) Power Supply
- Supports full brightness for most colours and effects
- Handles warm white and typical RGB combinations
- Provides comfortable safety margin for daily use
Full Feature Power Supply Requirements:
For 5 metres: 12V, 8A / 96W
For full white power and maximum current draw, power is needed at both ends to avoid voltage drop.
Setting Up
Connect the LED strip to the controller.
The Candeo controller uses clearly labelled, easy-clip terminals:
- Red wire (LED Strip) → +5V terminal
- White wire (LED Strip) → DATA terminal
- Green wire (LED Strip) → GND terminal
- Double check your power supply does not exceed 5V, and connect the power supply.
- Set up your WLED controller by following these instructions.
Enter the WLED Config settings, go to LED Preferences, and enter the following:
Maximum PSU Current: Set to match the mA rating of your PSU (e.g., 3000 for 3A)

Warning: Do not enter more than your PSU can handle
- Length: Enter 180
- Colour Mode: GRB
- Save
- Verify all LEDs function properly
- Test different colours and effects
- Confirm smooth operation before mounting
