[C-WF-SSFS] Smart Switch Fused Spur - Getting Started
Getting Started with your Candeo C-WF-SSFS
Wiring Instructions
- Turn off the power.
- Connect the power supply (Live and Neutral) to terminals marked L IN (brown/red cable) and N IN (blue/black cable).
- Connect the load to L OUT and N OUT.
- Connect the Earth wire to the E terminal if required.
- The load cable can be fed through the cable exit at the bottom of the device, and secured with cable clamp.
Installation Instructions
To install your smart switch, please remove the screws to take off the front, then the back can be screwed onto the wall.
Pairing
Autoscan methodEZModeAP ModeAutoscan method- Press the On button for 5 seconds, and check the Wi-Fi LED is flashing blue.

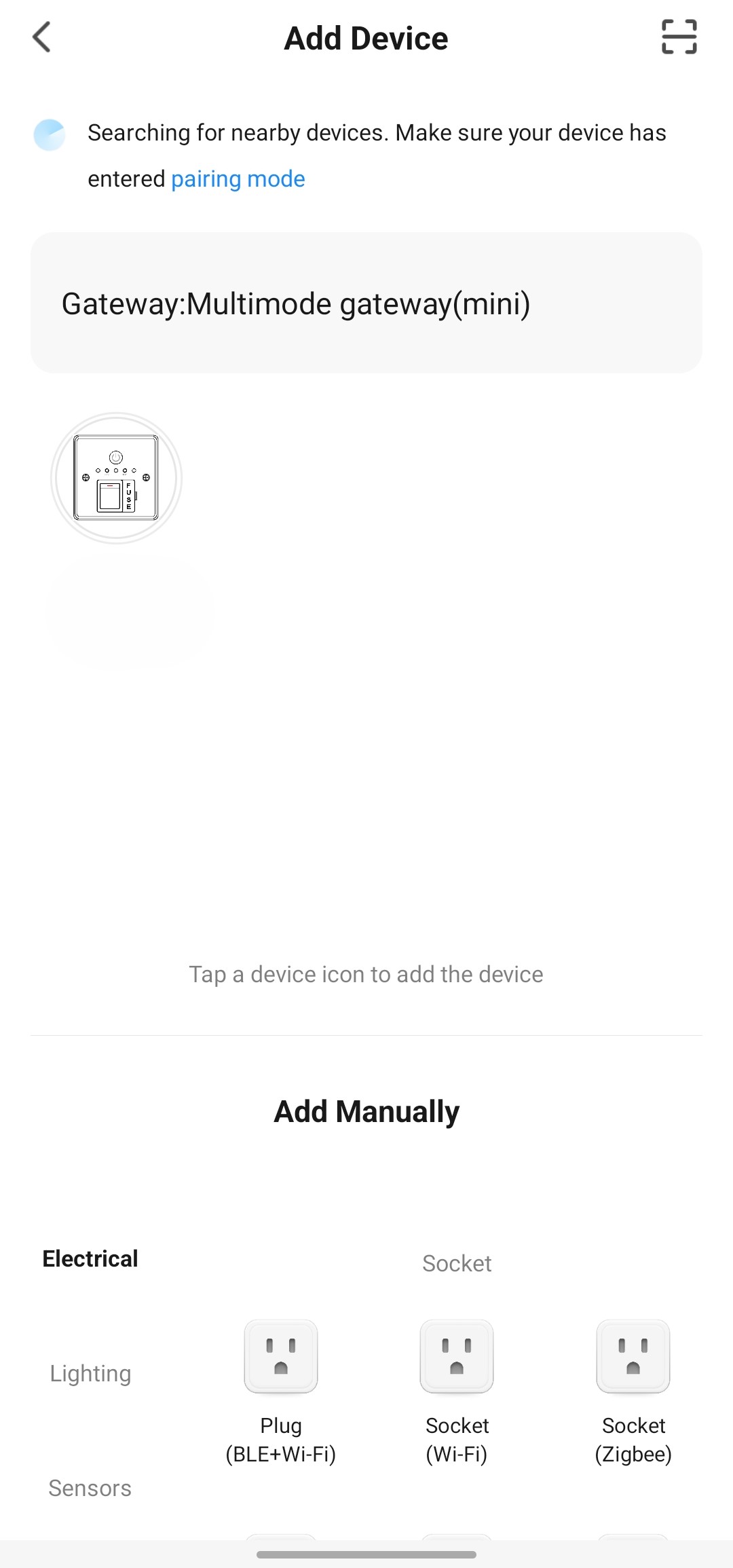

- Open your Smart Life app, and press the plus button, and choose "Add Device".
Show image
- Your Fused Spur should be discovered automatically. Tap on the icon to start the process.
Show image

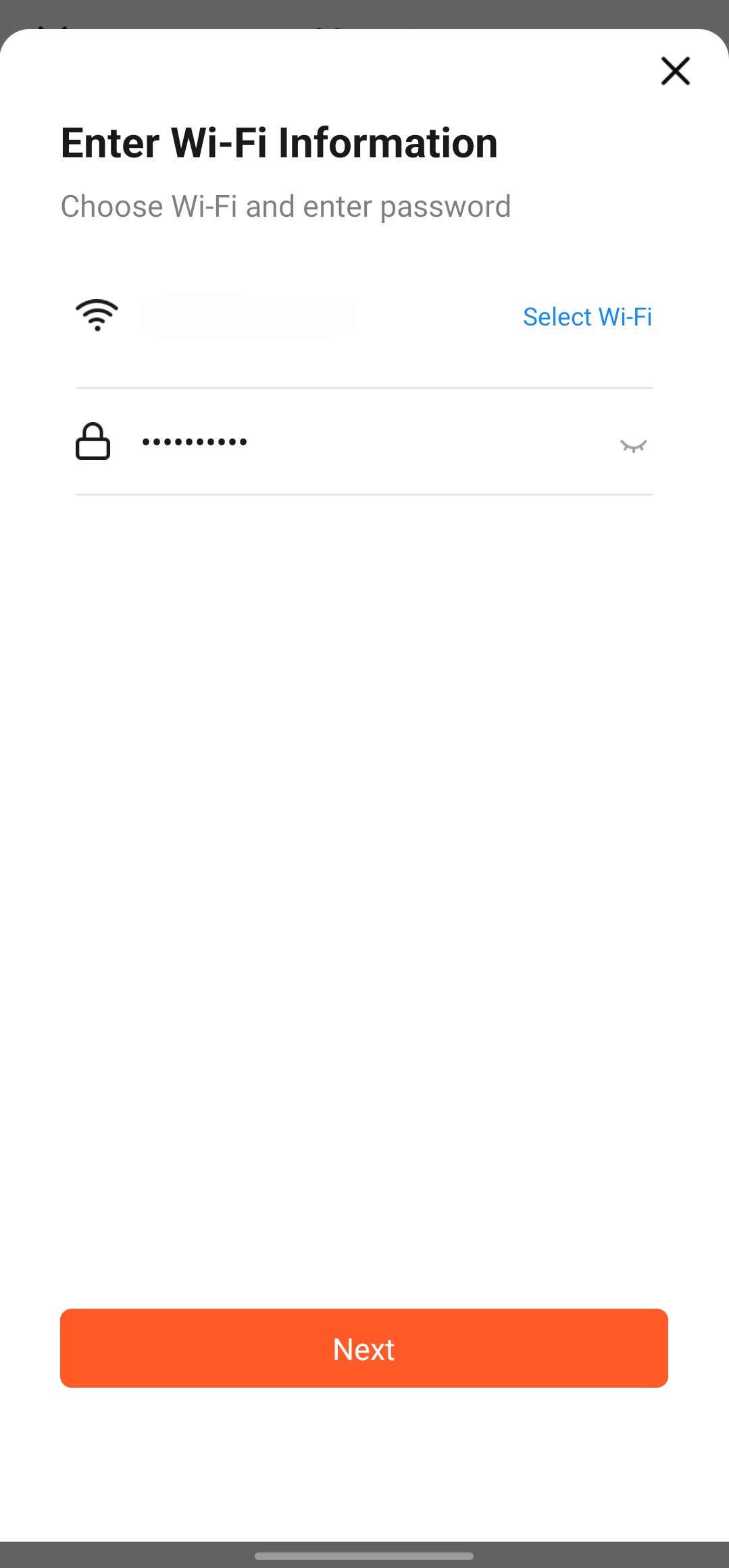

- Select your Wi-Fi network, and enter the password (your Wi-Fi must work on 2.4Ghz). Click "Next".
Show image

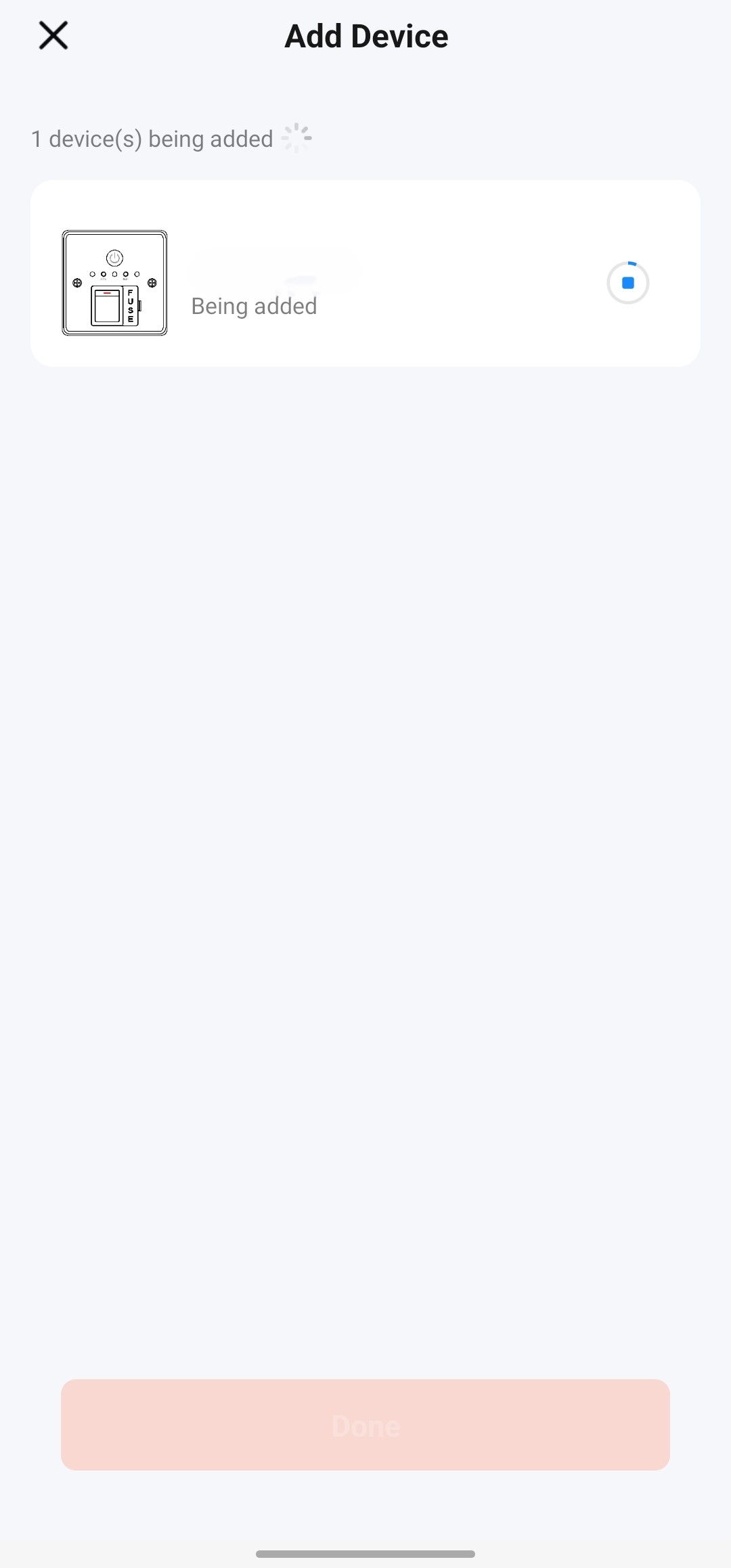

- The Smart Life app will register the device on your account.
Show image

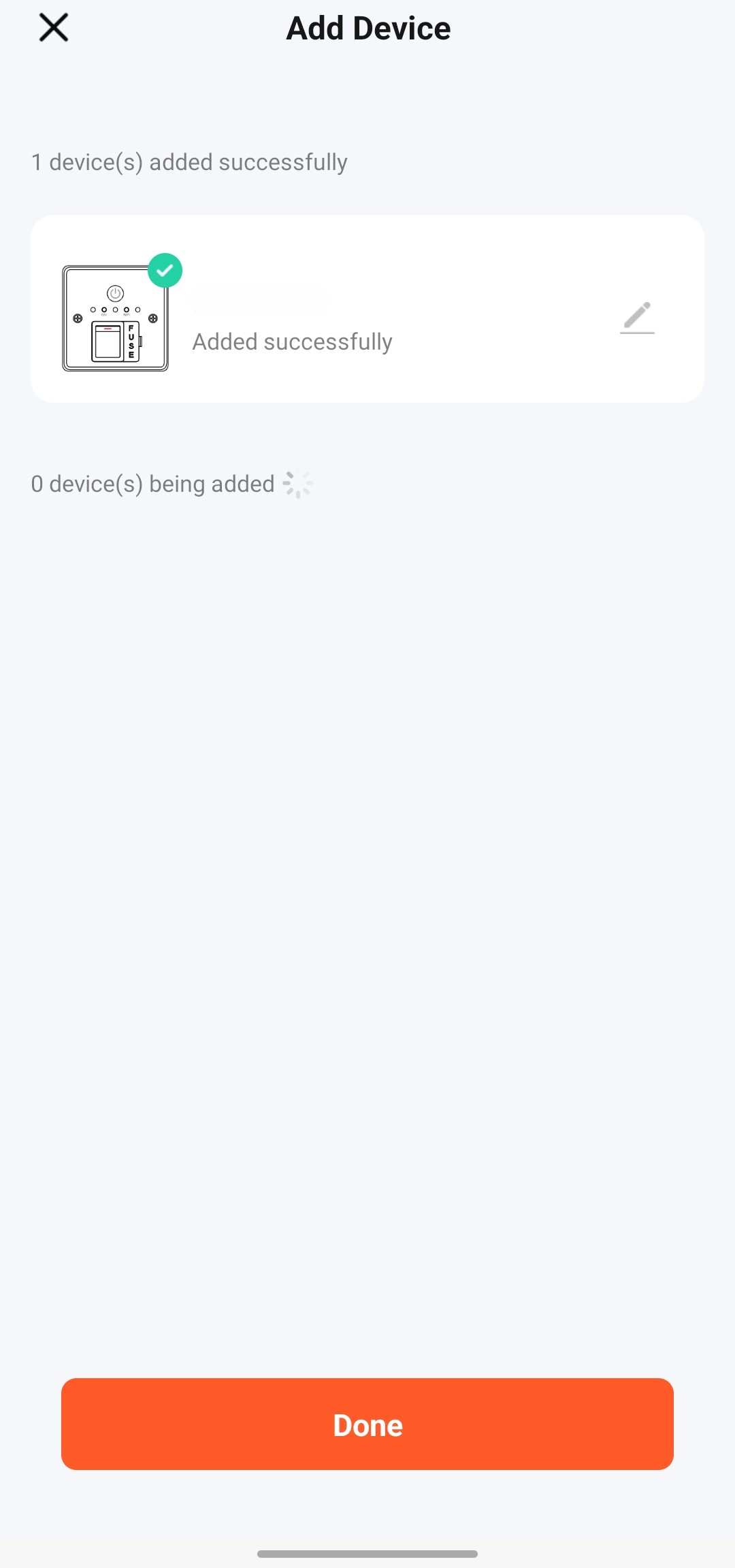

- You will now have the option to rename your fused spur, and control the lamp dimmer in your Smart Life app.
Show image
- If the Smart Life app does not register the fused spur automatically, wait 10 seconds, and try to pair the device using the method below.
EZMode- Ensure that the fused spur is on using the switch.
- Open your Smart Life app, press the plus button, and choose “Add Device”.
View image

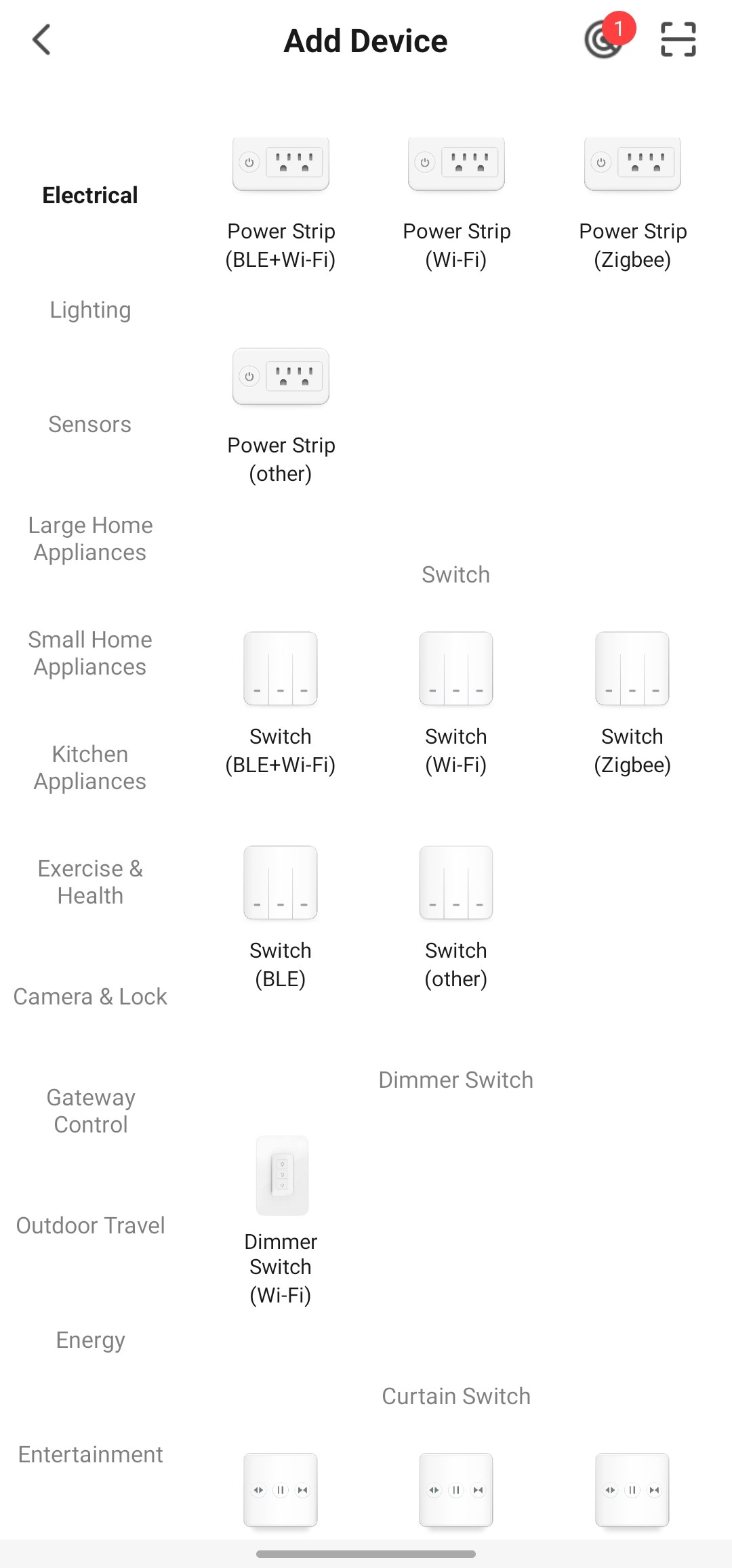

- In the left-hand menu, select “Electrical”, and then “Switch (Wi-Fi)”.
View image
- Select your Wi-Fi network and enter the password.
(Please note that your Wi-Fi network must work on a 2.4 GHz frequency.)
View image
- Click “Next”.
- Press the On button for 5 seconds.

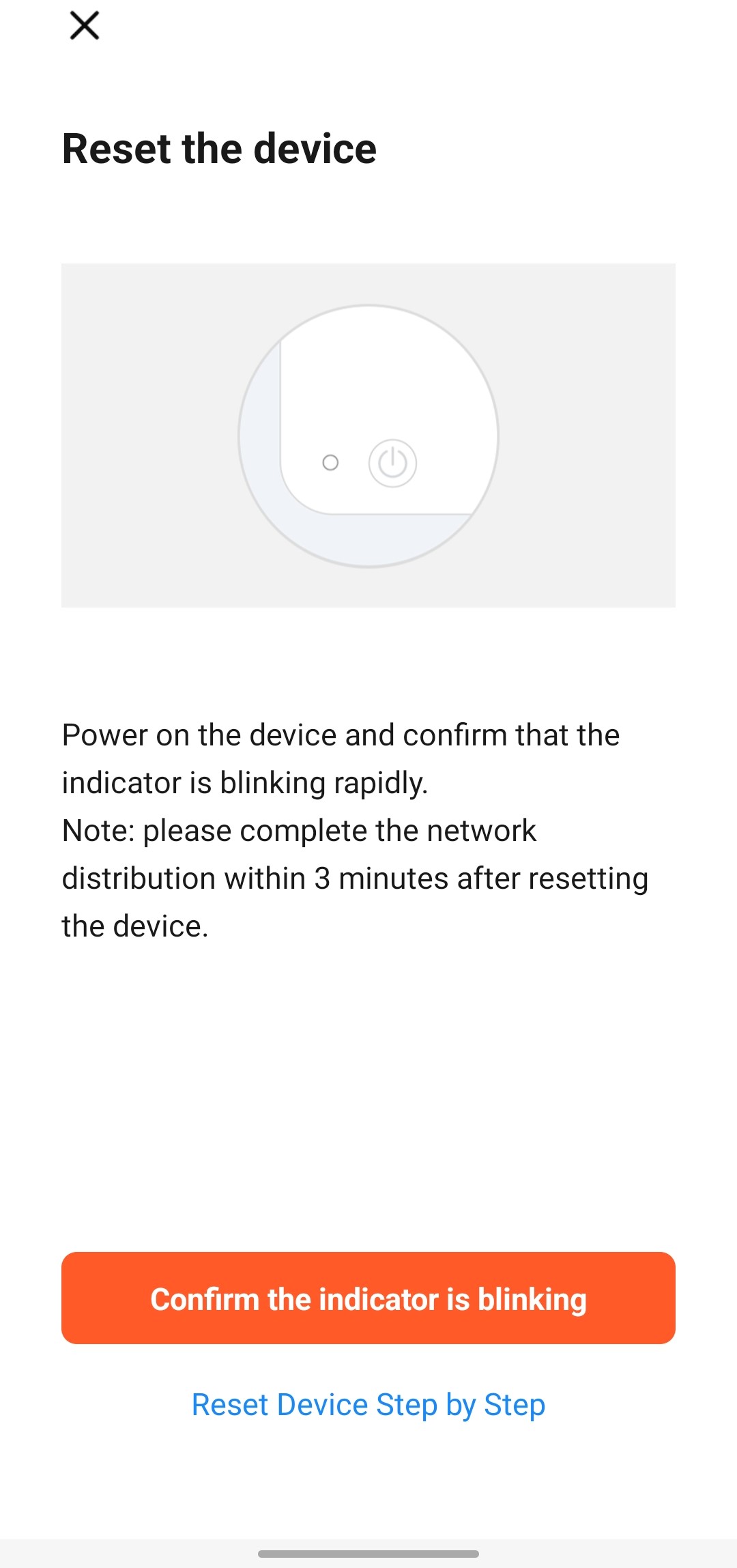

- In the Smart Life app, select “Confirm the indicator is blinking or breathing”.
View image

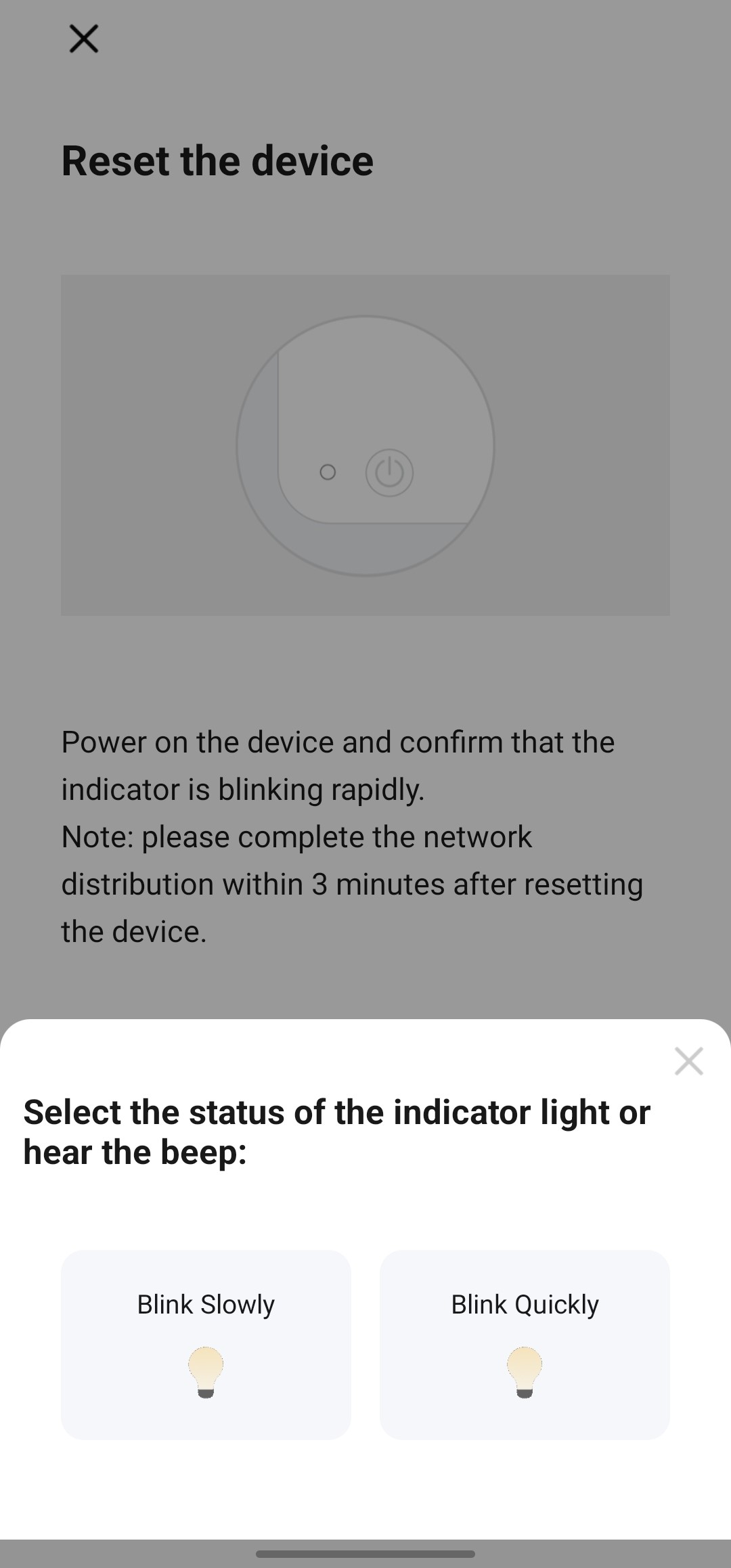

- Select “Blink Quickly”.
View image
- The Smart Life app will find your device and register it to your account.
View image
- You will now have the option to rename your fused spur and control it in the Smart Life app.
View image
- If the Smart Life app does not register the fused spur, wait 10 seconds and try pairing again using the AP method below.
AP Mode- Ensure that the fused spur is on using the switch.
- Open your Smart Life app, and select the plus symbol to add a device.
View image
- In the left hand menu, select "Electrical", and select "Switch (Wi-Fi)"
View image
- Select your Wi-Fi network, and enter the password. (Please note that your Wi-Fi network must work on a 2.4Ghz frequency).
View image
- Click “Next”.
- Press the button on the front of the fused spur for 5 seconds.
- In the Smart Life app select the option to "Confirm the indicator is blinking or breathing".
View image
- Select "Blink Slowly".
View image
- The Smart Life app will find your device and register the device on your Smart Life account.
View image
- You will now have the option to rename your plug as you see fit, and be able to control the lamp dimmer in your Smart Life app.
View image
Autoscan method
EZMode
AP Mode
Autoscan method
- Press the On button for 5 seconds, and check the Wi-Fi LED is flashing blue.
- Open your Smart Life app, and press the plus button, and choose "Add Device".
Show image
- Your Fused Spur should be discovered automatically. Tap on the icon to start the process.
Show image
- Select your Wi-Fi network, and enter the password (your Wi-Fi must work on 2.4Ghz). Click "Next".
Show image
- The Smart Life app will register the device on your account.
Show image
- You will now have the option to rename your fused spur, and control the lamp dimmer in your Smart Life app.
Show image
- If the Smart Life app does not register the fused spur automatically, wait 10 seconds, and try to pair the device using the method below.
EZMode
- Ensure that the fused spur is on using the switch.
- Open your Smart Life app, press the plus button, and choose “Add Device”.
View image
- In the left-hand menu, select “Electrical”, and then “Switch (Wi-Fi)”.
View image
- Select your Wi-Fi network and enter the password. (Please note that your Wi-Fi network must work on a 2.4 GHz frequency.)
View image
- Click “Next”.
- Press the On button for 5 seconds.
- In the Smart Life app, select “Confirm the indicator is blinking or breathing”.
View image
- Select “Blink Quickly”.
View image
- The Smart Life app will find your device and register it to your account.
View image
- You will now have the option to rename your fused spur and control it in the Smart Life app.
View image
- If the Smart Life app does not register the fused spur, wait 10 seconds and try pairing again using the AP method below.
AP Mode
- Ensure that the fused spur is on using the switch.
- Open your Smart Life app, and select the plus symbol to add a device.
View image
- In the left hand menu, select "Electrical", and select "Switch (Wi-Fi)"
View image
- Select your Wi-Fi network, and enter the password. (Please note that your Wi-Fi network must work on a 2.4Ghz frequency).
View image
- Click “Next”.
- Press the button on the front of the fused spur for 5 seconds.
- In the Smart Life app select the option to "Confirm the indicator is blinking or breathing".
View image
- Select "Blink Slowly".
View image
- The Smart Life app will find your device and register the device on your Smart Life account.
View image
- You will now have the option to rename your plug as you see fit, and be able to control the lamp dimmer in your Smart Life app.
View image
