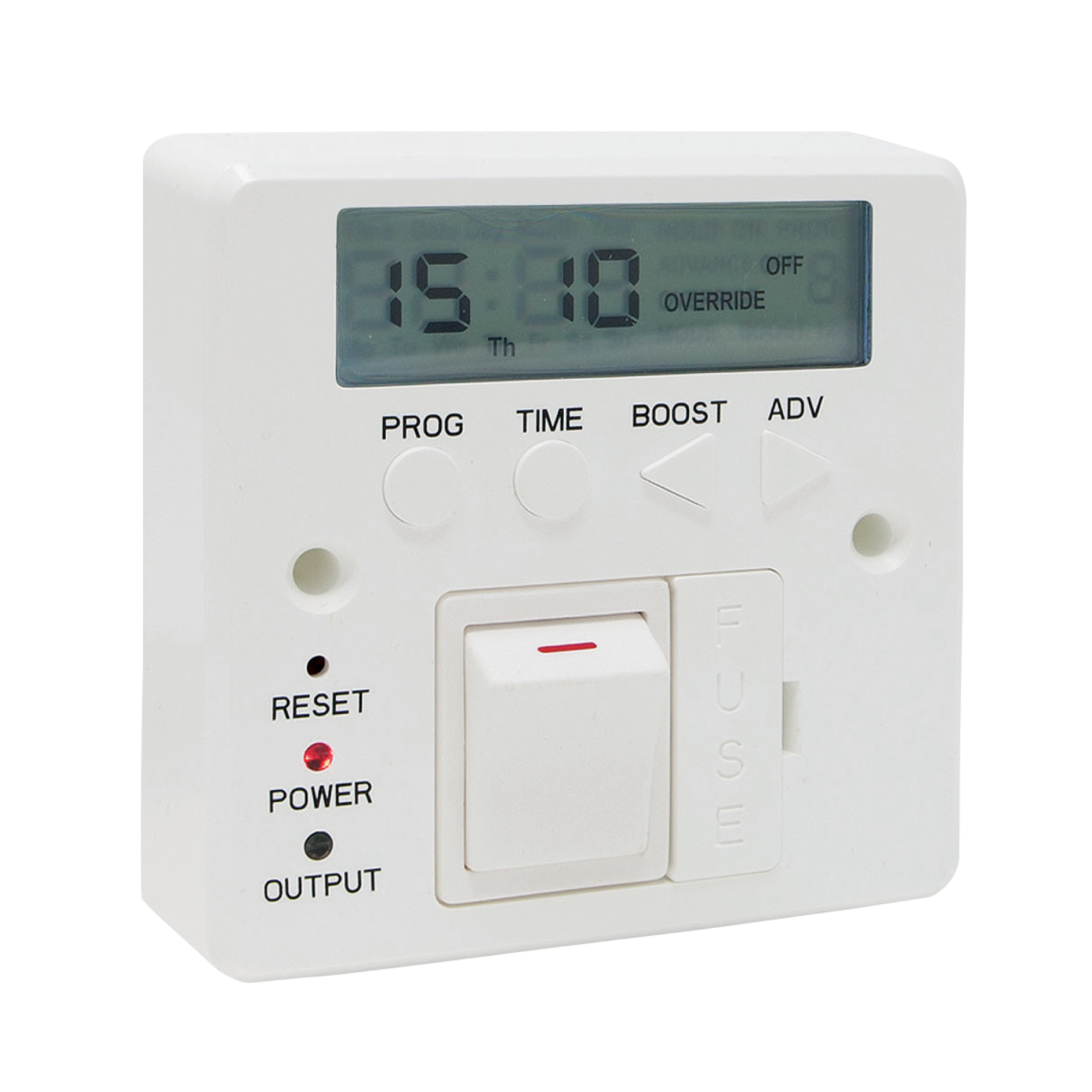

[C-TSFS] Digital Programmable Switched Fused Spur Timer - Getting Started
Getting Started with your Candeo C-TSFS
Wiring Instructions
- Turn off the power.
- Connect the power supply (Live and Neutral) to terminals marked L IN (brown/red cable) and N IN (blue/black cable).
- Connect the load to L OUT and N OUT.
- Connect the Earth wire to the E terminal if required.
- The load cable can be fed through the cable exit at the bottom of the device, and secured with cable clamp.
Installation Instructions
To install your smart switch, please remove the screws to take off the front, then the back can be screwed onto the wall.
