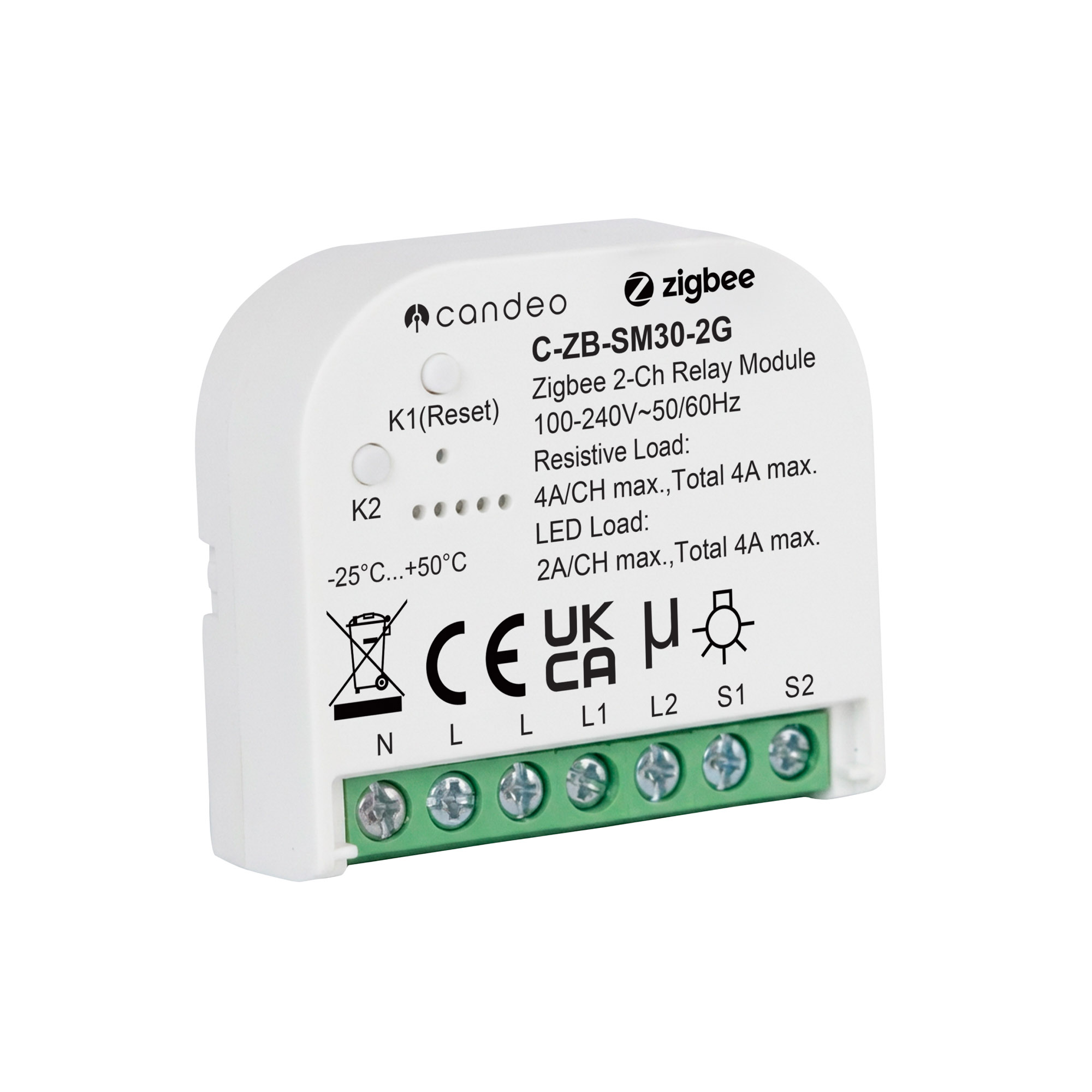

[C-ZB-SM30-2G] Candeo Zigbee 2-Gang Switch Module - Getting started

[C-ZB-SM30-2G] Candeo Zigbee 2-Gang Switch Module - Getting started

Manual & Documentation

Download the Instruction Manual here:

Wiring Guide

Please see our wiring articles:

Installation Instructions

Our switch modules are designed to fit inside your backbox.

External Switch Type Detection

Upon power-up, the default switch type is set to a push switch (momentary).
The system detects the actual switch type based on the user’s first operation after power-up:
  1. If the switch is pressed and held for more than 2 seconds: it is recognised as a regular (latching) switch.
  2. If the switch is pressed and released within 2 seconds, it remains identified as a momentary (push) switch.

Factory Reset the Device

  1. To manually perform a factory reset and enter pairing mode, press the K1 button 5 times.

Pairing

Prepare your smart hub:

Home Assistant - ZHA [Click to Expand ▾]
Works with Home Assistant ZHA

No preparation is needed — the device will work natively with ZHA.

Zigbee2MQTT [Click to Expand ▾]
Works with Zigbee2MQTT

No preparation is needed — the device will work natively with Zigbee2MQTT.

SmartThings [Click to Expand ▾]


You will need to install our driver.
  1. We recommend you unpair any C-ZB-SM30-2G devices already paired first.
  2. Go to:
    Candeo SmartThings Drivers
  3. Sign in to your Samsung account.
  4. Click "Enroll".
  5. Click "Available Drivers".
  6. Now find your model in the descriptions.
  7. Click "Install" under the driver details.
Hubitat [Click to Expand ▾]


You will need to install our driver.
  1. On your Hubitat instance, go to Drivers code.
  2. Click "+ New driver".
  3. Click "Import".
  4. Paste the following into the box that pops up:
    https://github.com/candeosmart/hubitat-zigbee/blob/main/Candeo%20C-ZB-SM30-2G%20Zigbee%202-Gang%20Switch%20Module%20(L%2BN).groovy
  5. Click "Import".
  6. Click "Save".
  7. Repeat the process but at step 4 paste the following instead:
    https://github.com/candeosmart/hubitat-zigbee/blob/main/Candeo%20C-ZB-SM30-2G%20Zigbee%202-Gang%20Switch%20Module%20(L%2BN)%20Child%20Switch.groovy
Philips Hue [Click to Expand ▾]
Works with Philips Hue

Core switching and dimming features are natively supported in Philips Hue. For advanced features or custom parameter configuration, a dedicated Zigbee hub is recommended.

Amazon Echo [Click to Expand ▾]
Works with Amazon Echo

Core switching and dimming features are natively supported across Amazon Echo devices with built-in Zigbee hubs. For advanced features or custom parameter configuration, a dedicated Zigbee hub is recommended.

Other Zigbee 3.0 Platforms [Click to Expand ▾]

Please follow the standard device pairing and search procedure outlined in your specific hub's manufacturer documentation.

Put the Device in Pairing Mode:

If the device has not yet been added to a network, it will automatically enter network pairing mode the first time it is powered on. This mode will last for 180 seconds or until the device is successfully added to a network.

Initiate Zigbee pairing on your Zigbee smart home platform, and your device will be discovered.
Need further assistance? Browse C-ZB-SM30-2G FAQs →
