[G-D-X-P] Installation & Removal Instructions

[G-D-X-P] Installation & Removal Instructions



Warning
If you have any concerns about wiring this yourself, please consult a qualified electrician.

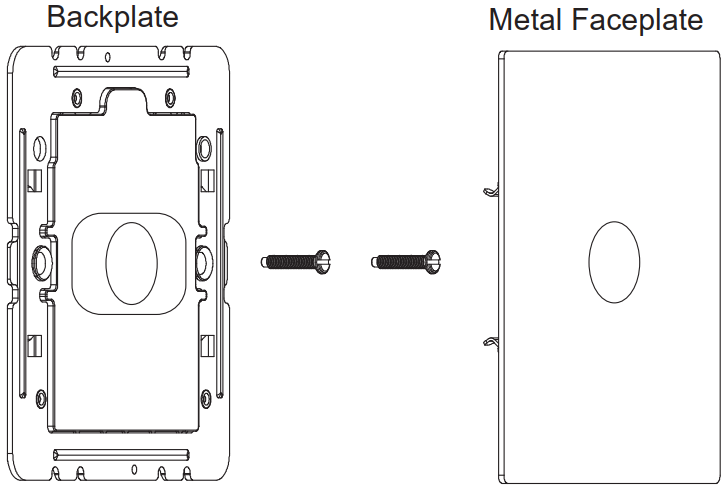

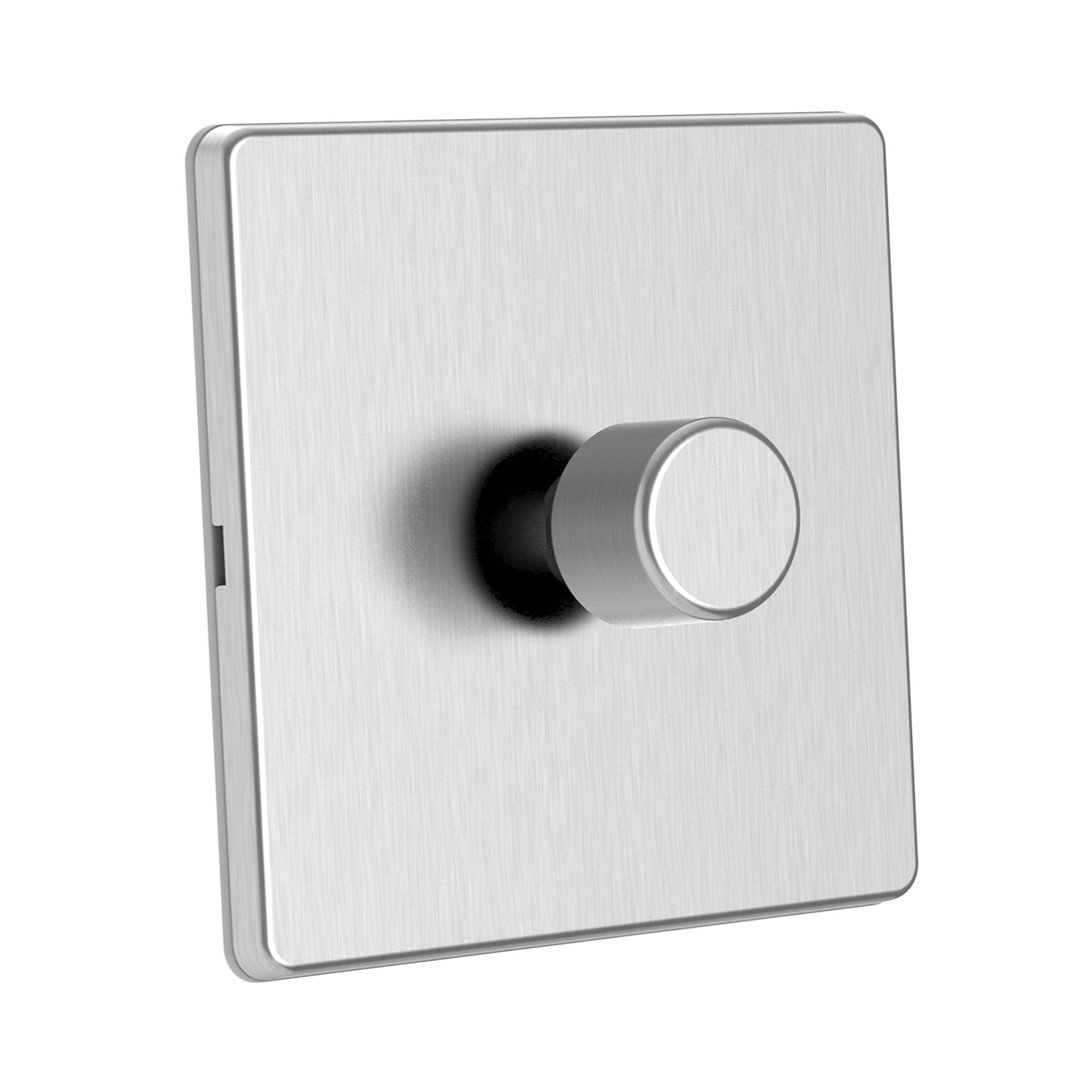

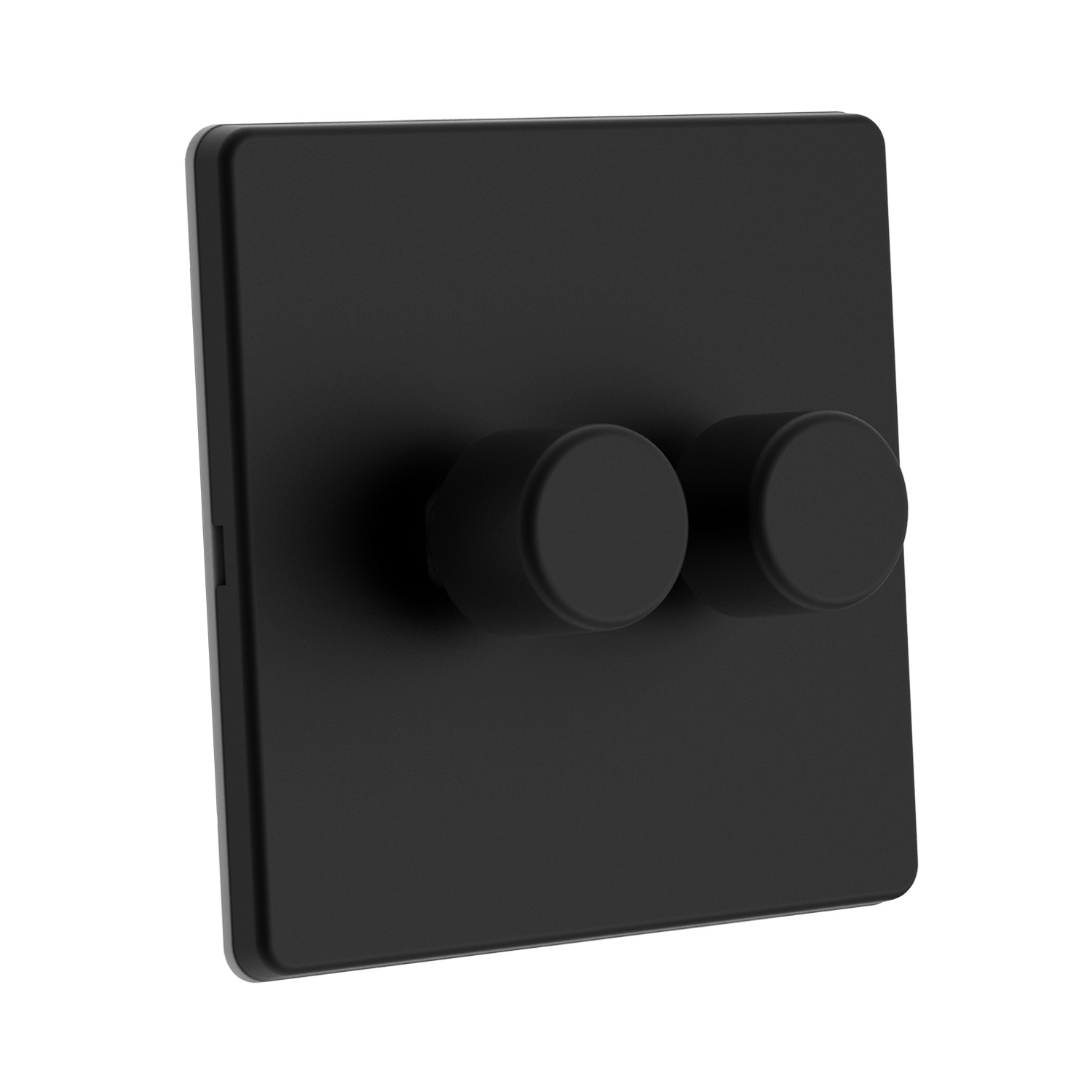

Your screwless faceplate comprises of 2 key components:
  1. The backplate to be wall mounted.
  2. The metal faceplate.



Alert
Please ensure you have wired an earth connection when using metal faceplates.

Installation
  1. Fix your dimming module to the backplate and tighten with the washer and bolt supplied with your dimmer.
  2. Once the dimming module is secure, wire your dimmer as per the instructions included with your dimmer.
  3. Use the supplied wall screws to fix the combined dimmer/backplate to your switch backbox.
  4. Carefully place the metal faceplate in place and snap together with backplate, and finally add the knob.
Removal

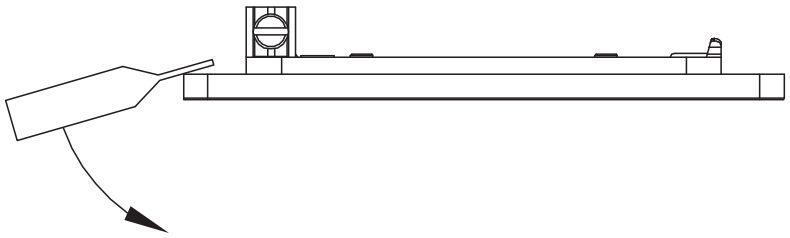

  1. Insert a screwdriver into the small gap on one side of the metal plate, and gently lever to separate the combined insert and gasket, from the metal plate.

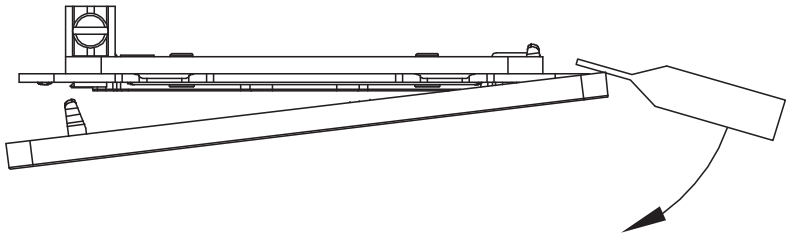

  2. Repeat the process on the other side so the metal plate gently snaps off the insert.
