LED strip configuration

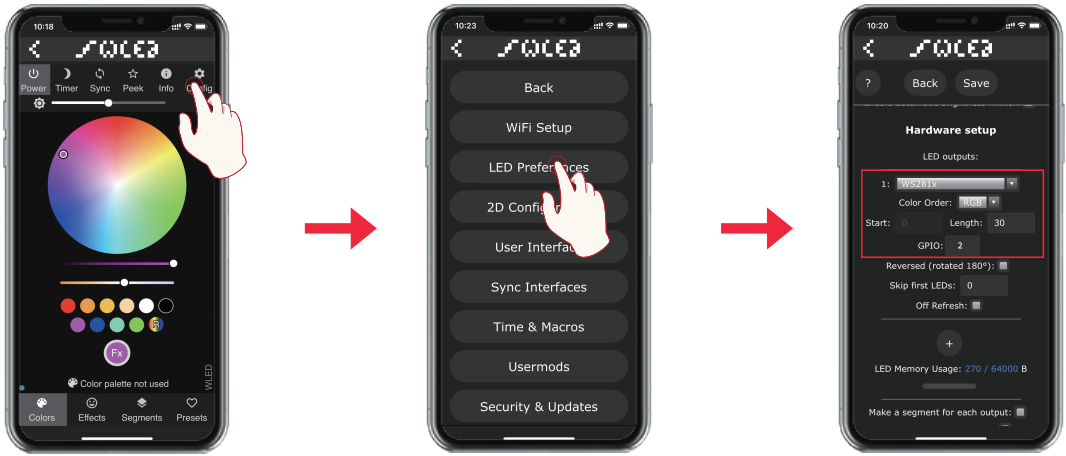

  1. Go to the WLED control page and click on the "Config" button. in the upper right corner.
  2. Then, select "LED Preferences" and navigate to "Hardware setup" to configure the LED strip information.

Relay configuration

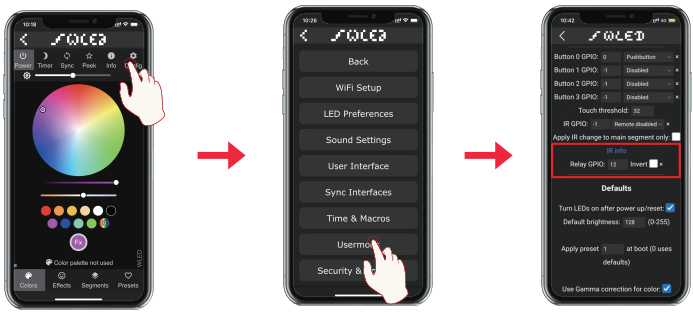

  1. Go to the WLED control page and click on the "Config" button. in the upper right corner.
  2. Select "LED Preferences", then find "Relay GPIO".
  3. Configure Relay GPIO as 12.
  4. Uncheck Invert, and click Save to apply the settings.
Note: When using this function, every time the light is turned on or off, the power to the output terminal will be simultaneously turned on or off to save electricity. It is important to note that this function cannot turn off the power supply for backup power.



Mic configuration

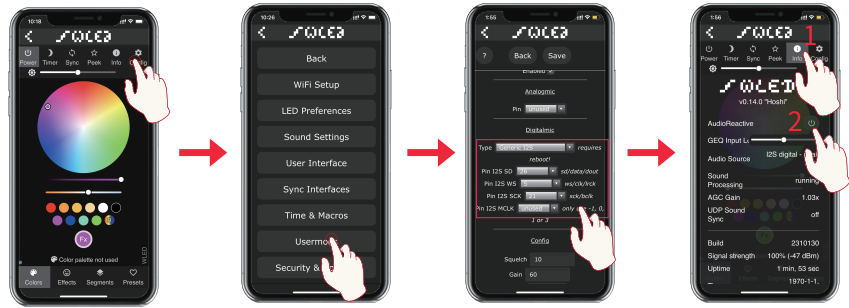

  1. Go to the WLED control page and click on the "Config" button. in the upper right corner.
  2. Select “Usermods”.
  3. Scroll to “Digitalmic”, and enter the configuration as below.
  4. Once complete, click save, and reboot the controller.
  5. Use the “AudioReactive” button in the “Info” menu to use the mic.
Config information

1. Microphone type: Generic 12S
2. 12S SD pin: 26
3. 12S WS pin: 5
4. 12S SCK pin: 21


Button functions

Restart button

Pressing the button will power off the controller module, releasing it will power it back on. Useful when the controller needs to be restarted after configuring the microphone.

OPT button
  1. Short press: Power on/off.
  2. Long press for 1 second: Switch colors.
  3. Long press for 10 seconds: Reset the WLED controller and activate the WLED-AP hotspot.
