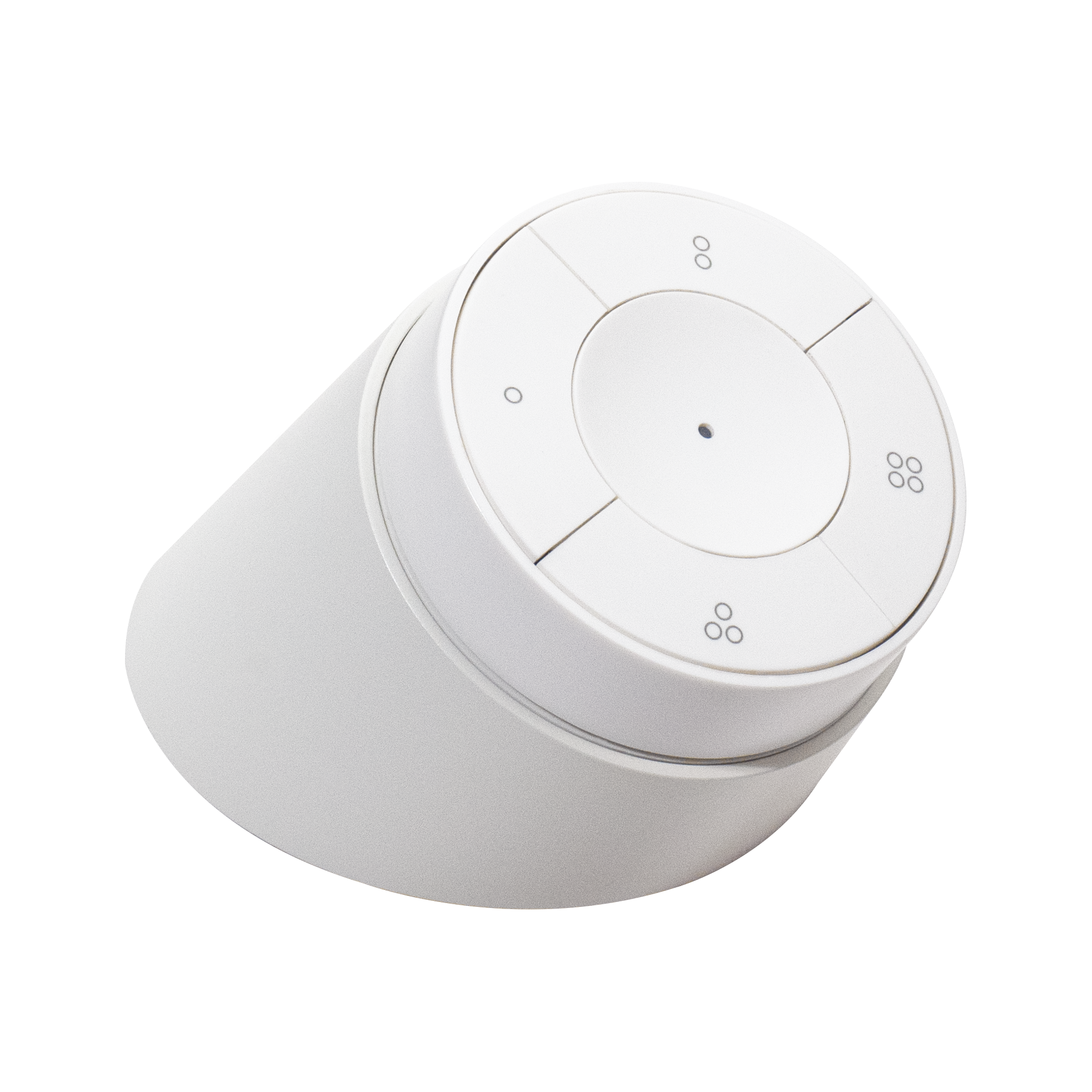

[C-ZB-SR5BR] How do I pair the 5 button remote with Home Assistant? (ZHA)

1. Add our custom quirk to your ZHA instance:
   (If you need any guidance regarding installing custom quirks, please see our How-To article)
1. https://github.com/candeosmart/homeassistant-zha/blob/main/candeo_c-zb-sr5br_scene_switch_remote_5_button_rotary.py

2. Set your hub to pairing mode:

1. Open your Home Assistant dashboard.

2. Go to the menu and click on settings.

3. Click "Devices & Services".

4. Click the blue "ADD INTEGRATION" button.

5. Click "Add Zigbee device".

6. Home Assistant will scan for new Zigbee devices.

3. Activate pairing on the remote:

1. Press the centre button 5 times quickly, followed by a long 6th press (3 seconds).

2. The device will reset and then remain in pairing mode for 3 minutes, during which time the LED will flash red.
