[CMM-1 Modmote] Zigbee Scene Remote - Getting Started

[CMM-1 Modmote] Zigbee Scene Remote - Getting Started

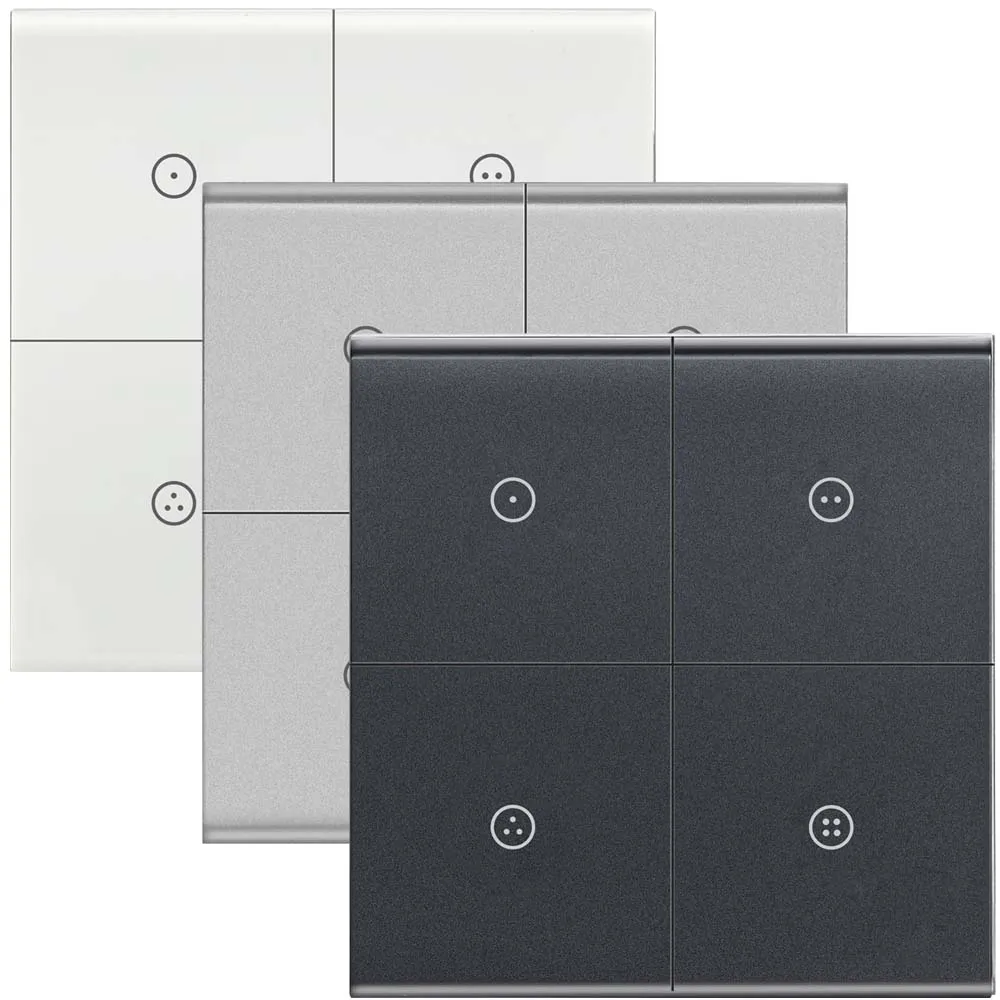

Getting Started with your Candeo CMM-1

Download the Instruction Manual here:

Modmote Instruction Manual

Installation Instructions

  1. The Modmote is fitted with a magnetic back plate than can be fixed to any flat surface using the 3M tape attached. Simply remove the cover of the tape and fix the back plate in your desired location.
  2. The remote can then be placed on the back plate, and removed as you wish.

Pairing

Prepare your smart hub:


Home Assistant - ZHA
zigbee2mqtt
SmartThings
Hubitat
Hue
Amazon Echo
Other Zigbee 3.0 platforms
Home Assistant - ZHA


No prep needed - the device will work natively with ZHA.
zigbee2mqtt


No prep needed - the device will work natively with zigbee2mqtt.
SmartThings


You will need to install our driver:

  1. We recommend you unpair any Modmote devices already paired first.
  2. Go to:
    https://bestow-regional.api.smartthings.com/invite/1J2QyNNJAO20
  3. Sign in to your Samsung account.
  4. Click "Enroll".
  5. Click "Available Drivers".
  6. Now find your model in the descriptions.
  7. Click "Install" under the driver details.

Hubitat


You will need to install our driver:

  1. On your Hubitat instance, go to Drivers code.
  2. Click "+ New driver".
  3. Click "Import".
  4. Paste the following web address into the box that pops up:
    https://raw.githubusercontent.com/candeosmart/hubitat-zigbee/main/Candeo%20Modmote%20Zigbee%20Scene%20Switch.groovy
  5. Click "Import".
  6. Click save.
Hue
Not supported on Hue

Amazon Echo
Not supported on Echo
Other Zigbee 3.0 platforms
Please follow the pairing instructions for your hub.


Put the Device in Pairing Mode:

  1. Press and hold the reset button for 10 seconds using the pin supplied.
  2. The LED at button 1 will blink green to indicate the remote is in pairing mode.

FAQs and Troubleshooting

Important Notice

The CMM-1 Modmote does not report the battery level, so any battery levels shown on your smart hub will be inaccurate.
