[C-ZB-LC20] How do I pair my zigbee LED controller to Hubitat Elevation?

1. Factory Reset the controller:

1. Method 1:

1. Press and hold the reset button for 5 seconds. The LED strip will flash 3 times.

2. Method 2:

1. Power on the controller.

2. Within 2 seconds disconnect the power.

3. Wait for at least 5 seconds.

4. Repeat steps i. through iii. 5 times.

5. The LED strip will flash 3 times.

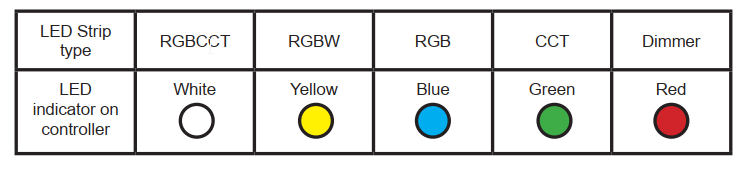

2. Put the controller into the correct mode. For instructions click here: Mode Instructions

3. If you haven't already, please install the custom driver for your mode. Instructions can be found here: Driver Instructions
4. Initiate pairing mode to pair to Hubitat. (Adding to your Zigbee Network)

1. Open your Hubitat dashboard.

1. Go to devices.

2. Click "Add Device".

3. Under "Add device manually" select zigbee.

5. Put the lighting module into pairing mode:
1. Connect the controller the power source.


If your Hubitat hub doesn't find the LED controller, please try powering the controller off and on again, or resetting the controller.
