[C-ZB-SM205-2G] Wiring Instructions
- Turn off the power.
- To avoid electrical shock and/or equipment damage, disconnect electrical power at the main fuse or circuit breaker before installation and maintenance.
- Be aware that even if the circuit breaker is off, some voltage may remain in the wires — before proceeding with the installation, be sure no voltage is present in the wiring.
- Take extra precautions to avoid accidentally turning the device on during installation.
- Connect the device according to the diagrams shown below.

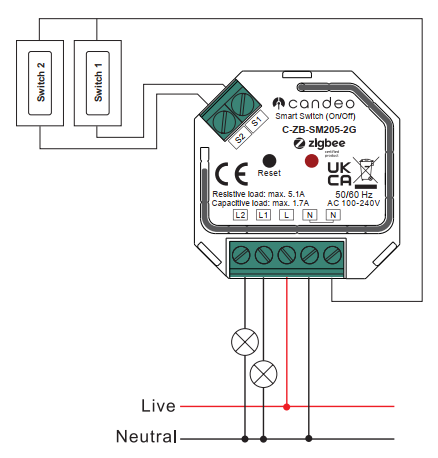

Please note, the switch is optional as the modules can be used with the smart control only if desired. Wiring - with optional toggle switch

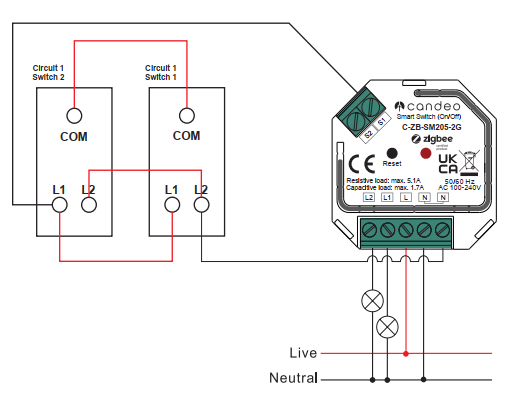

Wiring - 2 way system with toggle switches
The example shown is for only 1 circuit. Repeat the instructions for the 2nd circuit if needed.
