[C-ZB-LC20] How do I pair my zigbee LED controller to Samsung Smartthings?

1. If you haven't already, please install our  custom driver for your mode. Instructions can be found here: Driver Instructions
2. Factory Reset the controller:

1. Method 1:

1. Press and hold the reset button for 5 seconds. The LED strip will flash 3 times.

2. Method 2:

1. Power on the controller.

2. Within 2 seconds disconnect the power.

3. Wait for at least 5 seconds.

4. Repeat steps i. through iii. 5 times.

5. The LED strip will flash 3 times.

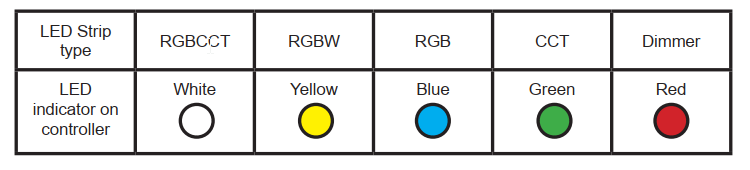

3. Put the controller into the correct mode. For instructions click here: Mode Instructions
4. Add the module to your Zigbee hub or bridge:

1. Open your Smartthings app.

1. Go to devices.

2. Select the room of your choice.

3. Tap the +.

4. Choose "Add a device".

5. Choose  "Scan nearby".

5. Put the lighting module into pairing mode:
1. Connect the controller the power source.


If your Smartthings hub doesn't find the LED controller, please try powering the controller off and on again, or resetting the controller.
