[C-ZB-DM201-2G] Wiring Instructions

If in any doubt please consult an electrician.

1. Turn off the power.

1. To avoid electrical shock and/or equipment damage, disconnect electrical power at the main fuse or circuit breaker before installation and maintenance.

2. Be aware that even if the circuit breaker is off, some voltage may remain in the wires — before proceeding with the installation, be sure no voltage is present in the wiring.

3. Take extra precautions to avoid accidentally turning the device on during installation.

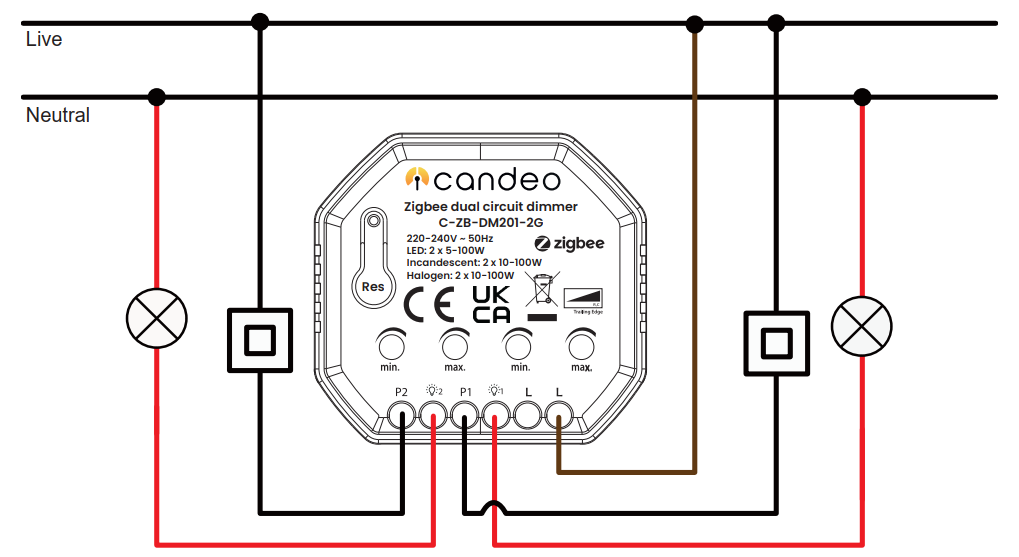

2. Connect the device according to the diagrams shown below.

Notes; The C-ZB-DM201-2G module can also be used without switches (smart only control) by following the basic wiring diagram.

Toggle/rocker switches are not supported.
