[C-RF-SSGR1/C-RF-SSP1/C-ACGRFP] How do I install my kinetic switch?
C-RF-SSGR1 Grid Switches with C-ACGRFP Faceplates
To install our SSGR1 grid switches in the C-ACGRFP faceplates, locate the slot in the edge of the faceplate and carefully use a screwdriver to pop open the faceplate.
The switches then clip securely into the faceplate.
The switches then clip securely into the faceplate.

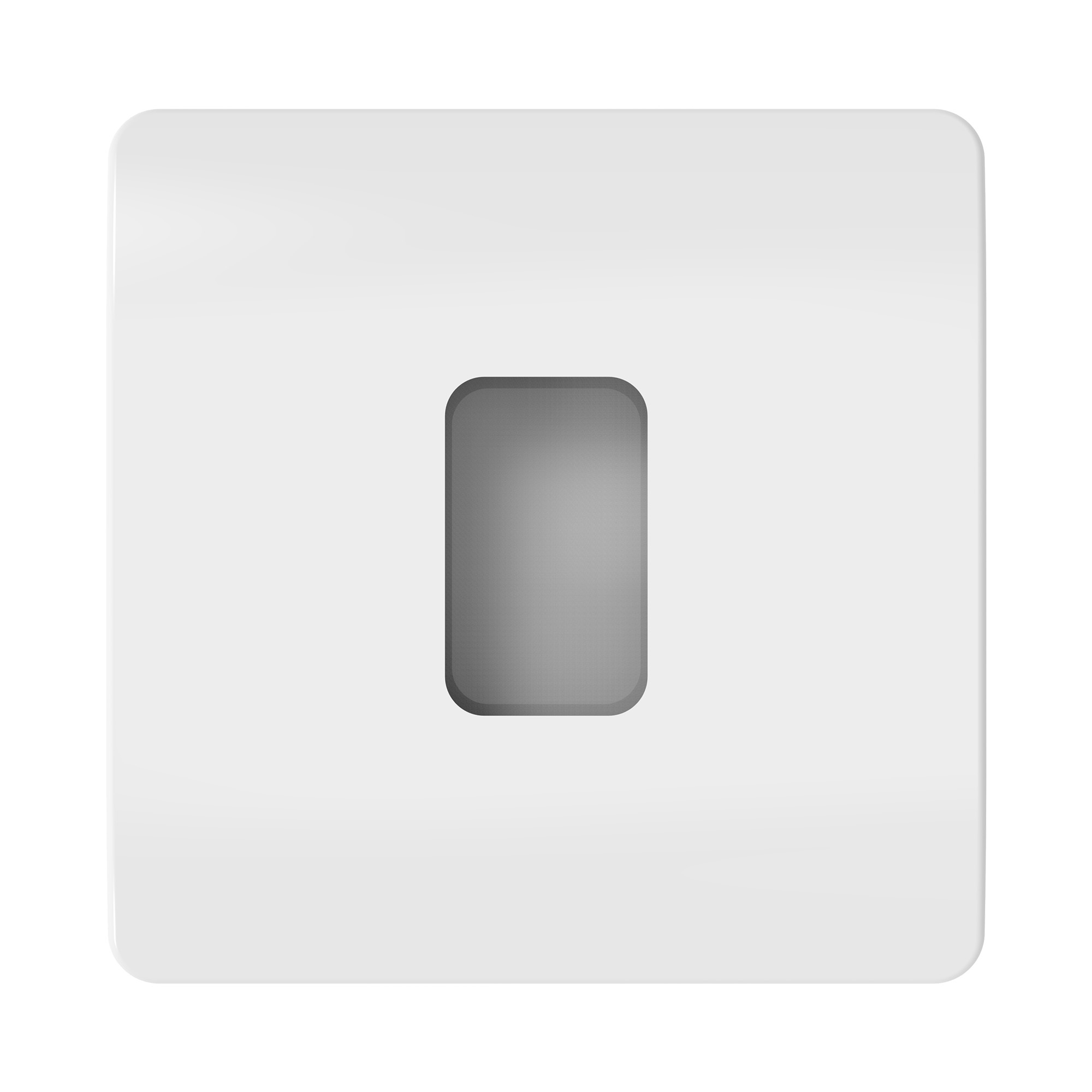

Mounting the C-ACGRFP Faceplates
The C-ACGRFP faceplates can be mounted using either the supplied adhesive patches or the provided screws.
Adhesive Mounting:
Ensure the mounting surface is clean and dry. Attach the adhesive patches to the back of the faceplate, then press the faceplate firmly onto the mounting surface.
Ensure the mounting surface is clean and dry. Attach the adhesive patches to the back of the faceplate, then press the faceplate firmly onto the mounting surface.
Screw Mounting:
Separate the front of the faceplate from the back by carefully inserting a screwdriver into the slot along the edge. Once separated, insert the screws through the holes in the back section to secure it in place.
Separate the front of the faceplate from the back by carefully inserting a screwdriver into the slot along the edge. Once separated, insert the screws through the holes in the back section to secure it in place.
Note: The C-ACGRFP faceplates can also be fitted to standard UK backboxes using the existing switch mounting screws.

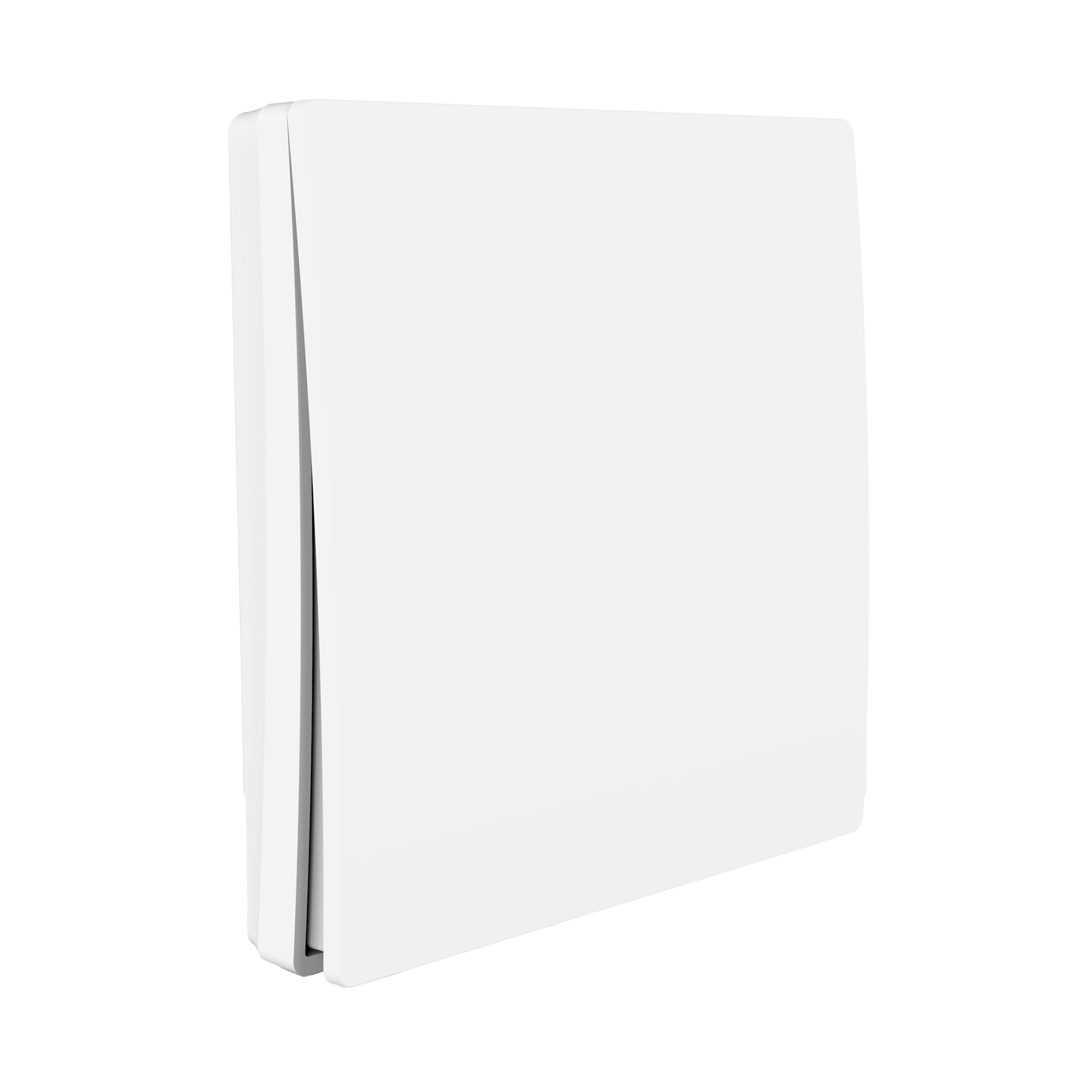

Mounting the C-RF-SSP1 Paddle Switches
The C-RF-SSP1 paddle switches can be installed using either the supplied adhesive patches or the provided screws.
Adhesive Mounting:
Ensure the mounting surface is clean and dry. Attach the adhesive patches to the back of the paddle switch, then press it firmly onto the mounting surface.
Ensure the mounting surface is clean and dry. Attach the adhesive patches to the back of the paddle switch, then press it firmly onto the mounting surface.
Screw Mounting:
To install using screws, remove the switches from the front first. Once removed, insert the screws through the holes in the back section to secure the switch to the mounting surface.
To install using screws, remove the switches from the front first. Once removed, insert the screws through the holes in the back section to secure the switch to the mounting surface.
Note: The C-RF-SSP1 paddle switches can also be installed onto standard UK backboxes using the existing mounting screws from the current switch.
