[C205] Wiring Instructions
- Turn off the power.
- To avoid electrical shock and/or equipment damage, disconnect electrical power at the main fuse or circuit breaker before installation and maintenance.
- Be aware that even if the circuit breaker is off, some voltage may remain in the wires — before proceeding with the installation, be sure no voltage is present in the wiring.
- Take extra precautions to avoid accidentally turning the device on during installation.

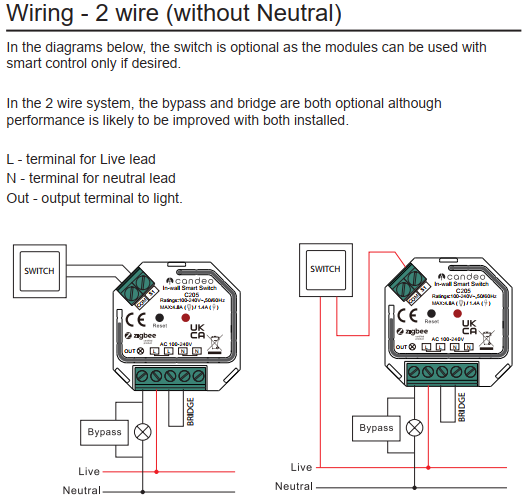

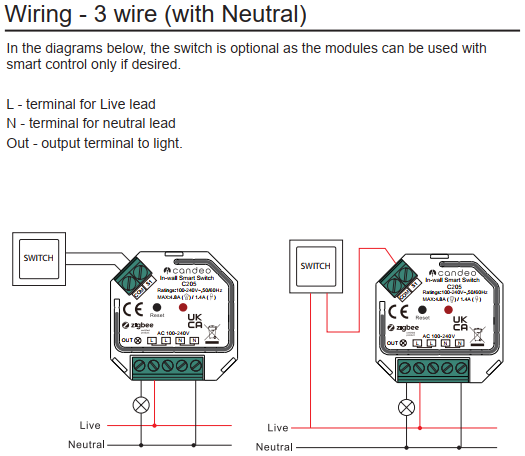

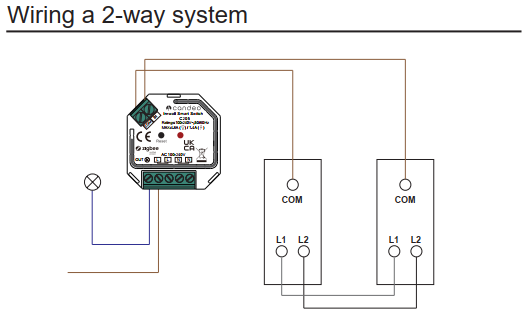

- Connect the device according to the diagrams shown below for either a 2-wire or 3-wire system.
Please note, the switch is optional as the modules can be used with the smart control only if desired.
