[C201] Wiring Instructions
- Turn off the power.
- To avoid electrical shock and/or equipment damage, disconnect electrical power at the main fuse or circuit breaker before installation and maintenance.
- Be aware that even if the circuit breaker is off, some voltage may remain in the wires — before proceeding with the installation, be sure no voltage is present in the wiring.
- Take extra precautions to avoid accidentally turning the device on during installation.

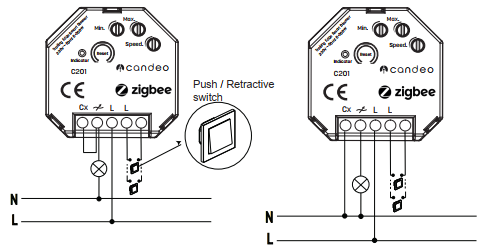

- Connect the device according to the diagrams shown below for either a 2-wire or 3-wire system.
Notes:
- The C201 module can be physically activated using either a single push/retractive switch, or multiple switches in a multi-way configuration.
- Pressing once toggles the lights on/off; and holding the switch activates dimming.
- Push/retractive switches should be single direction switches i.e. bottom OR top only.
- The C201 module can also be used without switches (smart only control) by following the basic wiring diagram.
Toggle/rocker switches are not supported.
Please note, if you are not using a N wire, connect the N (Cx) and Load ( ) terminal to improve the stability of the dimming.Related Articles
