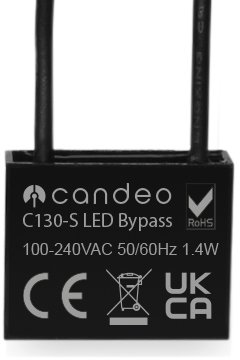

[C130-S] Wiring Instructions



Warning
If you have any concerns about wiring this yourself, please consult a qualified electrician.
  1. Turn off the power
    1. To avoid electrical shock and/or equipment damage, disconnect electrical power at the main fuse or circuit breaker before installation and maintenance.
    2. Be aware that even if the circuit breaker is off, some voltage may remain in the wires — before proceeding with the installation, be sure no voltage is present in the wiring.
    3. Take extra precautions to avoid accidentally turning the device on during installation
  2. This is normally installed just before the first light fitting in the circuit, but can also be installed just after a switch, if you have access to a neutral wire, and switched live wire.
  3. Connect the device according to the diagrams shown below.
General Wiring

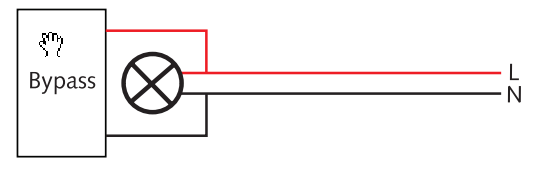

Before the first light fitting

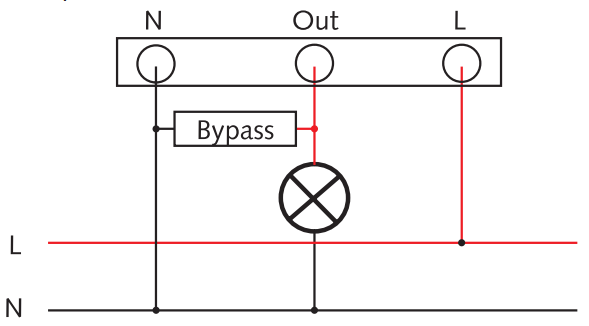

After the light switch

​Wiring diagram, showing the bypass installed after a light switch, but before a light fitting.​

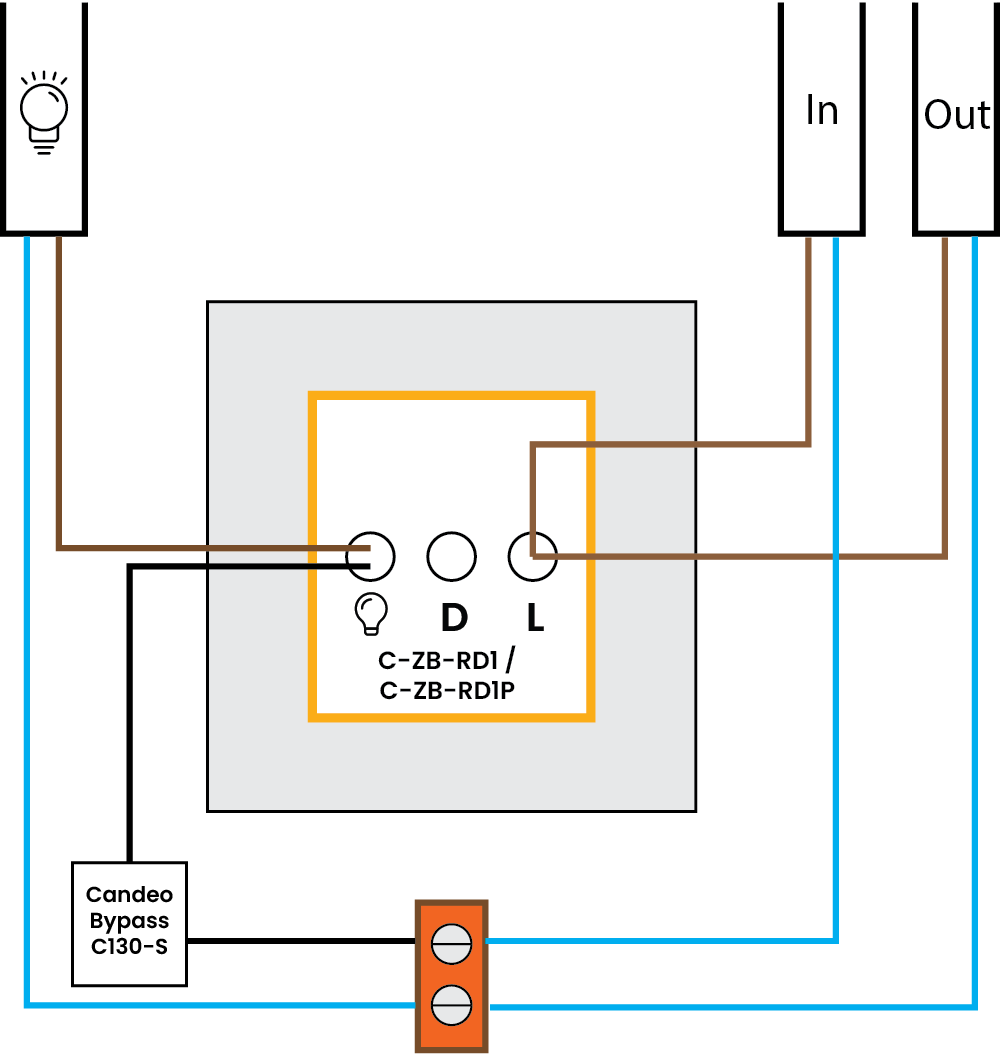

C-ZB-RD1/RD1P Wiring
With neutral only.
